Why choose us
Design and Requirements
Our technical performance parameters can meet your design needs. We can also manufacture products according to your design drawings.
Certification
We have obtained ISO9001, ISO14001, and ISO45001 certifications for our products, ensuring quality control, environmental management, and occupational health and safety.
Competitive Advantage
We have professional experience in sheave design and production, a strict quality control testing system, and offer 24-hour online service.

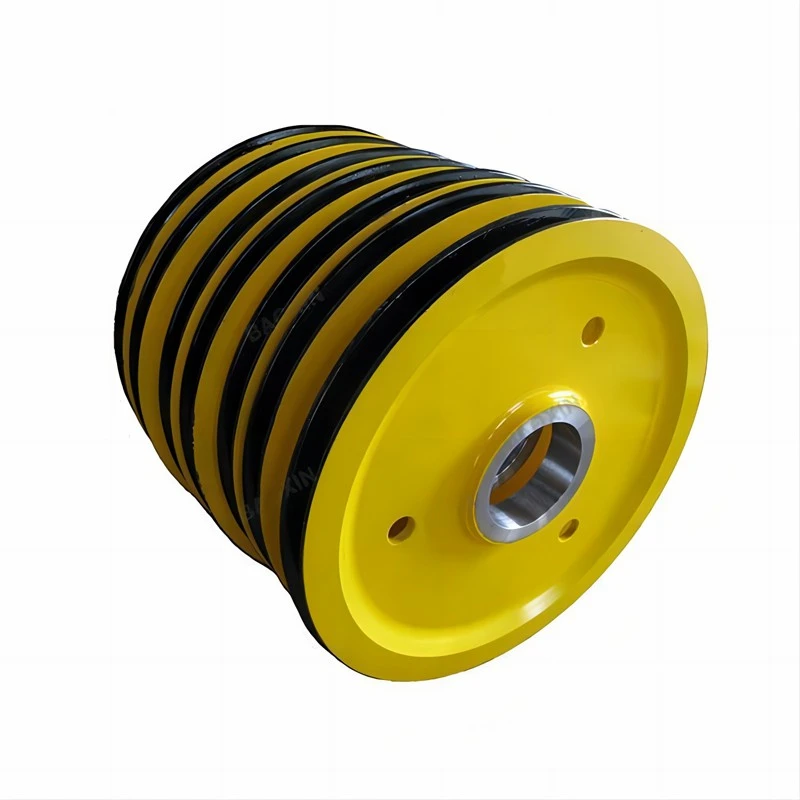

Heavy Duty Crane Sheaves, also known as pulleys, are wheel-like devices with a groove or channel that runs around the circumference. They are usually mounted on the crane's hook block or trolley and are an integral part of the crane's hoisting system. The rope or wire rope used for lifting passes through the groove in the sheave, creating a system of mechanical advantage that makes lifting heavy loads easier.
Rated Loading Capacity
1~160 ton.
01
Diameter of wire rope
7--82mm.
02
Process
Forging & Casting and Steel Plate Cutting.
03
Type
Forged & Casting & Rolling Pulley Wheels.
04
Application
Crane,trolley,truck crane,Heavyset duty industry,Port crane,Steel factory etc.
05
Basted iron: HT200 Ball mill cast iron.
Basted Steel: ZG20: ZG25: ZG35: ZG45.
Dimension: 200 w250, 350,400,500,600,700,800,1000,1200,01600.
Competitive Advantage: Quality control and management to the whole produce process. including ingot smelting.Forging, heat treatment. machinated strictly final inspection prior to delivery.
Business development, service-oriented, quality service, honesty first.
Adhere to integrity, Guaranteed qualitative!
Features Of Heavy Duty Crane Sheaves
Reducing the Workload on Cranes
The function of crane sheaves is to distribute large forces into multiple smaller forces, thereby reducing the workload on cranes when handling heavy loads and alleviating physical strain on operators.
Improving the Efficiency of Crane Operations
By utilizing the sheaves in crane to adjust direction and alter the path of load movement, the working efficiency of cranes can be significantly enhanced.
Achieving Adjustments in Multiple Directions
Crane sheaves can rotate in different directions, enabling adjustments to be made to the load vertically and horizontally. This capability allows cranes to adapt to various working scenarios.
The function of a crane sheave is multi-faceted, but here are the core roles they play:
Guiding Wire Rope: The primary job of a crane sheave is to precisely guide the crane wire rope as it runs through the pulley system. The groove in the sheave is carefully shaped and sized to match the diameter of the wire rope, ensuring proper seating and preventing the rope from slipping off the sheave during operation. This precise guidance is essential for smooth and controlled hoisting and lowering.
Supporting Wire Rope: Crane sheaves provide physical support to the wire rope, distributing the load and preventing excessive bending or stress concentration in any one point. The sheave acts as a bearing surface, allowing the rope to move freely under load while maintaining its structural integrity.
Reducing Wire Rope Wear: A properly designed and maintained crane sheave minimizes wear and tear on the crane cable or wire rope. The smooth, rotating sheave reduces friction compared to dragging the rope over a fixed surface. Correct groove profile and smooth sheave surfaces prevent abrasion and localized stress on the rope strands, extending the crane wire rope lifespan significantly.
Providing Mechanical Advantage (in Pulley Systems): When used in combination with other sheaves in a crane pulley system, crane sheaves are instrumental in creating mechanical advantage. As explained in other articles about crane pulley systems, sheaves arranged in blocks and tackles reduce the force required to lift a load, making heavy lifting possible with relatively smaller motors and mechanisms. The crane sheave design and arrangement are key to achieving the desired mechanical advantage.
Construction Sites
Crane sheaves are essential in construction projects for lifting materials, equipment, and structures to various heights.
Manufacturing Facilities
Industries rely on cranes and sheaves for moving heavy machinery and components along assembly lines.
Shipyards and Ports
Sheaves are integral to cranes used for loading and unloading cargo from ships and containers.
Mining Operations
In mining, crane sheaves help lift and transport massive quantities of materials and ores.
Crane sheaves are manufactured from a variety of materials and come in several designs to suit different applications, load capacities, and environmental conditions. The choice of sheave type directly impacts the performance, longevity, and safety of the crane.
|
Sheave Type |
Material |
Common Use Case |
Key Features |
|
Tower Crane Sheave |
Forged steel |
High-rise construction cranes |
Heavy-duty, high-load resistance |
|
Overhead Crane Sheave |
Cast iron or steel |
Factories, warehouses |
Moderate loads, smooth operation |
|
Mobile Crane Sheave |
Steel or alloy |
Mobile lifting equipment |
Lightweight, durable |
|
Nylon-Coated Sheave |
Steel + Nylon cover |
Indoor or low-noise environments |
Reduced noise, protects wire rope |
|
Custom Machined Sheave |
Customer-specified |
Special machinery, OEM applications |
Tailored dimensions and groove design |
Groove Wear
Always check the sheave grooves contour and diameter using a sheave gauge. Corrugated or worn grooves will cause severe damage to the wire rope.
Flange Wear
Visually assess the sheave flanges for any cracks, chips, and excessive wear. A broken flange would cause the wire rope to jaundice the sheave.
Bearing Health
Check for any unusual noise such as grinding or squealing, as this would indicate a failing bearing. Examine the sheave for any wobble or excessive play as this is an indicator of bearing wear.
Lubrication
Check to see that the sheave bearings are properly lubricated as per the instructions of the manufacturer. Lubrication is critical to minimize operational friction and the risk of failure. For sealed bearings, look for any signs of grease leakage.
Free Rotation
When the crane is locked and tagged, rotate the sheave manually and check that it rotates freely and does not bind.
Alignment
Check the alignment of the sheave with the wire rope, to ensure that there is no disproportionate wearing of the sheave flange and the rope.
We're professional heavy duty crane sheaves manufacturers and suppliers in China, specialized in providing high quality products and service. We warmly welcome you to buy high-grade heavy duty crane sheaves made in China here from our factory.
