Load Distribution
Crane sheaves distribute the load's weight evenly across the rope, preventing uneven wear and ensuring safe lifting operations.
Reduced Wear
Properly designed and maintained sheaves reduce wear on the lifting rope, prolonging its lifespan and lowering maintenance costs.
Controlled Movement
Sheaves enable precise control of load movement by adjusting the speed and direction of the rope winding around the sheave.
Enhanced Efficiency
The mechanical advantage provided by crane sheaves allows cranes to lift heavier loads with less strain on the hoist motor, increasing efficiency and reducing energy consumption.
Construction Sites
Crane sheaves are essential in construction projects for lifting materials, equipment, and structures to various heights.
Manufacturing Facilities
Industries rely on cranes and sheaves for moving heavy machinery and components along assembly lines.
Shipyards and Ports
Sheaves are integral to cranes used for loading and unloading cargo from ships and containers.
Mining Operations
In mining, crane sheaves help lift and transport massive quantities of materials and ores.
Fixed pulley
The fixed pulley is essentially an equal-arm lever, which is effortless and effortless, but it can change the direction of the force.
It is not labor-saving to pull the hook code through the fixed pulley. The reading of the spring balance is the same with or without the fixed pulley. It can be seen that using a fixed pulley does not save effort but can change the direction of the force. In many cases, changing the direction of the force will bring convenience to the work. The fixed pulley is essentially an equal-arm lever, and the power L1 and resistance L2 arms are equal to the radius of the pulley. According to the lever balance condition, it can also be concluded that the fixed pulley is not labor-saving.
Moving pulley
The moving pulley is essentially a lever with twice the power arm as the resistance arm, saving 1/2 the force and taking 1x the distance. Using a movable pulley can save half the effort and waste distance. This is because when using a movable pulley, the hook code is hung by two sections of rope, and each section of rope only bears half of the weight of the hook code. Although using the movable pulley saves effort, the distance moved by the power is greater than the distance the hook code is raised, that is, the distance is wasted.
Pulley block
Pulley block: A pulley block composed of a fixed pulley and a movable pulley, which saves effort and can change the direction of force.The pulley block uses several lengths of rope to hang the object, and the force used to lift the object is a fraction of the total weight. The free end of the rope that goes around the movable pulley is counted as one section, but the one that goes around the fixed pulley is not counted. Although using a pulley block saves effort, it costs distance. The distance moved by power is greater than the distance moved by the heavy object.
Pulley

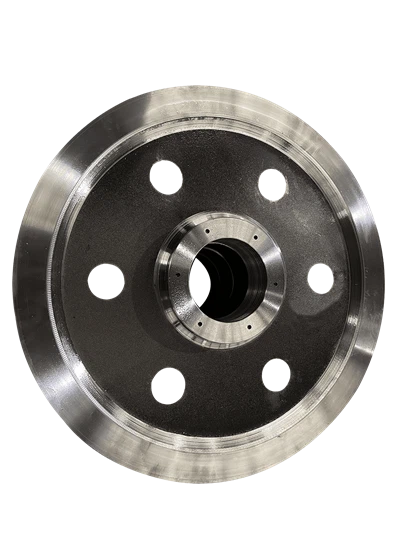

Crane pulleys are composed of hubs, edges, flanges and transverse center notches. They are generally made of cast iron and forged steel. On the edge of the pulley, there are certain grooves to fix the selected steel rope and also have an anti-slip effect.
Pulley shaft
The pulley shaft is the component that connects the pulley to the hydraulic cylinder or other driving device. It can be regarded as the support rod of the pulley. Usually high-quality alloy steel, forged steel or forged copper materials are used. Especially on cranes with high strength, high load and high speed operation, the choice of pulley shaft material is very important.
Bearing
Bearings are the most common components in crane pulley structures. Their main functions are to support light or heavy loads, ensure the accuracy and flexibility of mechanical operation, and transmit power. Commonly used bearings include deep groove ball bearings, angular contact ball bearings and sliding bearings. Bearing materials include cast iron, steel, ceramics, etc.
Friction bushing
Friction bushings are usually used in the load-bearing parts of pulley shafts, such as bearing seats. Its function is to reduce friction, reduce energy consumption and increase service life. Common materials include bronze, aluminum alloy, etc.
Toughness
Material toughness determines the overall strength of your sheave. By choosing a material with high strength qualities like Gar–Dur, it will give you the ability to put the sheave under heavy loads. Another benefit of choosing a strong material is it will increase impact resistance. Increasing impact resistance means your sheave will be able to withstand extra force for short periods of time.
Abrasive Resistance
Abrasive resistance is a material's ability to resist repeated sawing and scuffing from cable, wire, and other materials. A material such as Nylon has excellent abrasion resistance, meaning the sheave will stay in better shape and most likely increase service life. The less external damage to your sheaves, the better they will perform.
Chemical Resistance
Chemical resistance refers to a material's ability to withstand penetration, corrosion, or breakdown in extreme environments, such as water, acid, and harsh sunlight. If you need a sheave that will regularly be used in outdoor environments, choosing a material with excellent chemical resistance is recommended. One sheave material that is ideal for outdoor environments is stainless steel due to its high level of corrosion resistance.
Weight
Weight is a crucial consideration for sheave material. Weight plays a factor in the speed of your sheave and also affects the center of gravity, balance at high RPM, and determines force on structures when combined with loads. If you are looking for good lightweight sheave material options, we recommend Cast Nylon.
Temperature Range
When choosing a sheave material, consider the environment that the material will be exposed. Suppose the sheave will be operating in an environment with a lot of temperature fluctuation or exposed to extreme cold and heat. In that case, you will need material that can still offer high-level performance. If you need a suitable material in a range of temperatures, Gar-Dur is a great option, but if you need your material to perform at a higher temperature, choose Ceram-P(TM) Filled UHMW.
What Factors Should Be Considered When Selecting Crane Pulleys?
Load requirements
Select the appropriate sheave capacity and number based on the size and weight of the load the crane needs to carry.
Usage environment
Consider the environment and working methods in which the crane is used, such as indoors or outdoors, high or low temperatures, wet or dry, etc., to choose pulleys that can adapt to the working conditions.
Material selection
Choose high-strength, high-wear-resistant materials to ensure the durability and safety of the pulleys.
Relaxed design
Select the pulley that can meet the maximum tension design relaxation ratio to ensure the stability and safety of the work.
Frictional resistance
Consider the friction coefficient of the ropes used in the crane and the interaction of the pulleys with the ropes to ensure that the pulleys can provide good friction resistance and smooth movement of the ropes.
Dimensions
The overall dimensions of the pulleys are selected based on the restricted space in which the crane operates and the size of the warehouse.
Maintenance cost
Choose pulleys that are easy to maintain and replace to reduce maintenance costs.
Security and reliability
Choose pulleys that offer a high level of safety and reliability to ensure stability and safety on the job.
The work of the crane pulley mainly relies on the lever principle and mechanical principle in physics. In a crane, the drive unit is connected to the crane pulley by a rope or wire rope, and the pulley is connected to the weight. When the drive applies force, the crane pulley increases the amount of force and transfers it to the weight, causing the weight to begin to rise or fall.
The technology of crane pulleys can greatly improve the efficiency of the crane and ensure its stability and safety. In practical applications, there are many different types and working methods of crane pulleys, each type has its own unique role and scope of application. Therefore, when we choose the crane pulley, we need to select and use it according to the specific situation to achieve better results.
Pay attention to cleanliness
Pay attention to cleaning the track after each use of the crane pulley block, because during use, the wire rope is often coated with low-temperature lubricating oil, which will inevitably adhere to the track surface of the pulley block during use. Work. Therefore, grease must be removed during maintenance to keep the track surface clean. In addition, correct the correct position of the sheave and drive shaft, and add lubricating oil to moving parts such as bearings.
Prevent oxidation
Track cleaning of crane pulley blocks requires the use of neutral detergents. After cleaning, repair the peeled paint to ensure that the pulley surface is completely covered with paint to prevent oxidation.
Periodic inspection
In addition, the steel wire should be checked regularly for corrosion, burrs, etc. If so, it needs to be dealt with in time, otherwise it will cause serious wear to the wheel grooves of the crane pulley block. It is necessary to check whether some fixing parts are loose and whether the seals are worn. The above are the specific contents of regular maintenance and inspection of the crane pulley block.
Henan Zhongzao Industry Co., Ltd has a registered capital of 10 million yuan, which is located in Changyuan City, Henan Province, and we are professional manufacturer and seller of crane accessories.Our main products include crane spreader, crane hook sets, pulley sets, rolling pulleys etc.The company covers an area of 9600 square meters and has R & D technical team with rich practical experience and strong development ability.
Q: How does the pulley system work in a crane?
Q: What are the different types of crane pulleys?
Q: What stops a crane from tipping over?
Q: Why can a crane lift extremely heavy loads?
Q: How do pulleys help lift loads?
Q: What material is used for crane pulleys?
Q: What would cause a crane to collapse?
Q: Which pulley needs less effort to lift a load Why?
Q: What is the simplest principle of pulleys?
Q: How do you set up a pulley for lifting?
Q: What is the pulley on a crane called?
Q: Where are pulleys placed in a crane?
Q: What is the difference between a crane and a pulley?
Q: Which type of pulley is best?
Q: Which pulley can lift a load faster?
Q: What is the terminology of pulley?
Q: How are pulleys mounted?
Q: What places do pulleys work?
Q: Where are pulleys commonly found?
Q: What is the difference between the two major types of pulleys?
We're professional crane sheaves manufacturers and suppliers in China, specialized in providing high quality products and service. We warmly welcome you to buy high-grade crane sheaves made in China here from our factory.
