CD and MD Electric Wire Rope Hoist

Model CD1 and MD1 wire rope electric hoist is small-sized lifting equipment, which can be mounted on single beam, bridge, gantry and arm cranes. With slight modification, it can also used as a winch. It is widely used in factories, mines, harbors, warehouse and shops, essential in raising working efficiency and improving working conditions.

Send Inquiry

Product Introduction

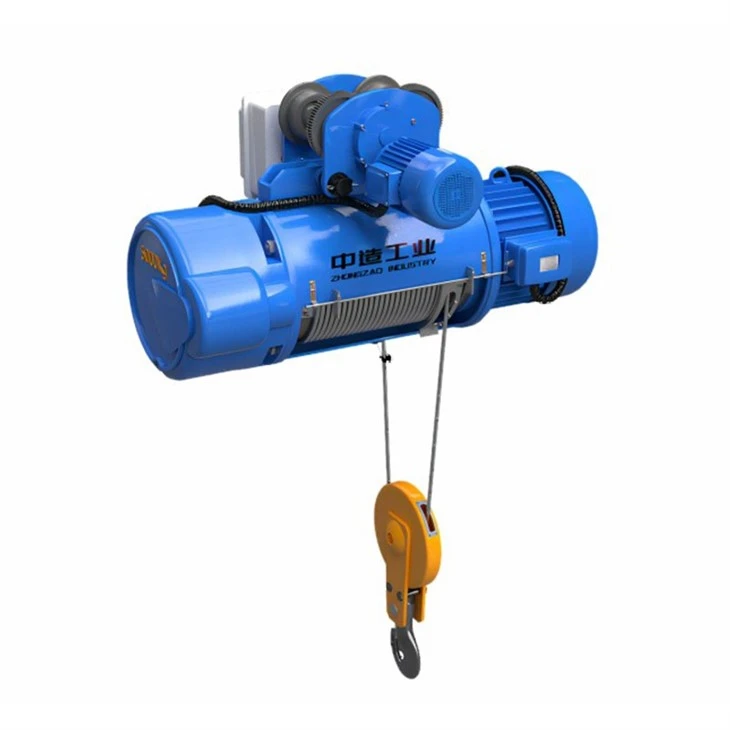

CD/MD electric wire rope hoist

Introduction of electric wire rope hoist:

Model CD1 electric hoist has only one normal speed, which can satisfy normal application. Model MD1 electric hoist provides two speeds, normal speed and low speed. At a low speed, It can do precise loading and unloading, mounding of sand box, maintenance of machine tool. Model MD1 electric hoist is more widely than model CD1

Technical parameter pf CD and MD electric wire rope hoist:

Model			CD1&MD1
Lifting capacity		T	0.5				1						2
Lifting height		M	6	9	12	18	6	9	12	18	24	30	6	9	12	18	24	30
Lifting speed		m/min	8 0.8/8				8 0.8/8						8 0.8/8
Running speed		m/min	20				20						20
Wire rope	Nominal diameter	mm	5				7.4						11
	Structure		NAT6*37+NF				6*37+NF						6*37+NF
	Intension rate	Mpa	1770				1670						1670
I Beam Track Type(GB/T706-1998)			16～28b				16～28b						20a～45c
Loop track minimum radius		M	1.5				1.5		2		3	4	2		2.5		3	4
Lifting motor	Model		ZD₁ 21-4 ZDS₁ 0.2/0.8				ZD₁ 22-4 ZDS₁ 0.2/1.5						ZD₁31-4 ZDS₁ 0.4/3.0
	Capacity	Kw	0.8 0.2/0.8				1.5 0.2/1.5						3 0.4/3.0
	R.P.M	r/min	1380				1380						1380
	Phase		3				3						3
	Voltage	V	380				380						380
	Current	A	2.4 0.72/2.4				4.3 0.72/4.3						7.6 1.25/ 7.6
	Frequency	Hz	50				50						50
Running motor	Model		ZDY₁11-4				ZDY₁11-4						ZDY₁11-4
	Capacity	Kw	0.2				0.2						0.2
	R.P.M	r/min	1380				1380						1380
	Phase		3				3						3
	Voltage	V	380				380						380
	Current	A	0.72				0.72						0.72
	Frequency	Hz	50				50						50
Joint times		t/h	120				120						120
Classification grade			M3				M3						M3
Basic dimension±2%	H	MM	～865		～955		～880			～970			～1035			～1140
	L2		126				159						187
	L1		228/225				269/266						279
	L		628 625	714 711	772 769	916 913	772 769	867 864	965 962	1161 1158	1357 1354	1553 1550	818	918	1018	1218	1418	1618
	M		318	390	462	601	404	499	597	793	989	1185	412	512	612	812	1012	1212
	N		190				196						240
	H		120				124						155
	￠		14.5				19						23
	B		～884				～884						～910
	E		～795				～805						～960
	F		355/508				368/508						368/529
Weight ±15%	CD	Kg	115	120	145	150	156	167	190	213	232	250	222	241	287	301	333	358
	MD		135	140	165	170	170	181	205	227	246	264	248	267	341	327	360	384
	CD(fixed)		80	85	90	95	118	128	135	152	169	186	168	185	199	206	237	259
	MD(fixed)		100	105	110	115	132	142	149	166	183	200	193	210	224	231	262	285
