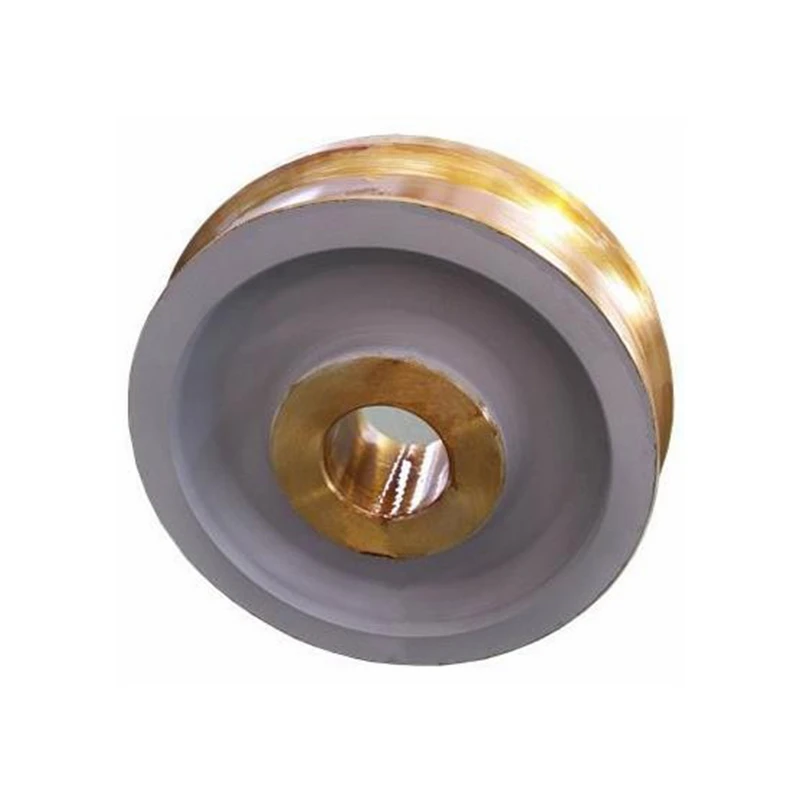

Single Flange Crane Wheel
We design and produce mold forged crane wheels over twenty years,production capacity 20,000 tons per year. The two pictures shows the benefits of forged crane wheels.
- Product Introduction
Single Flange Crane Wheel
Description of Single Flange Crane Wheel
We design and produce mold forged crane wheels over twenty years,production capacity 20,000 tons per year. The two pictures shows the benefits of forged crane wheels.
Drawing of Single Flange Crane Wheel
Data of Single Flange Crane Wheel
|
Model N |
Overall Size(mm |
Detail Size(mm |
||||||||
|
D |
B |
B1 |
d |
S |
d1 |
d2 |
D2 |
D3 |
R |
|
|
WL-160 |
160 |
85-100 |
80-95 |
45 |
20 |
70 |
|
≤120 |
-- |
5 |
|
55 |
85 |
|||||||||
|
WL-200 |
200 |
85-100 |
80-95 |
60 |
20 |
95 |
≤160 |
|||
|
80 |
125 |
|||||||||
|
WL-250 |
250 |
85-110 |
80-105 |
70 |
25 |
110 |
20 |
≤210 |
175 |
10 |
|
90 |
140 |
|||||||||
|
WL-315 |
315 |
95-155 |
90-140 |
100 |
30 |
160 |
25 |
≤265 |
225 |
|
|
110 |
175 |
|||||||||
|
120 |
190 |
|||||||||
|
WL-400 |
400 |
105-156 |
100-140 |
110 |
35 |
175 |
35 |
≤340 |
270 |
|
|
120 |
190 |
|||||||||
|
130 |
205 |
|||||||||
|
WL-500 |
500 |
105-180 |
100-160 |
120 |
40 |
190 |
40 |
≤430 |
325 |
20 |
|
130 |
205 |
|||||||||
|
140 |
220 |
|||||||||
|
WL-630 |
630 |
120-210 |
115-190 |
140 |
45 |
220 |
50 |
≤560 |
420 |
|
|
160 |
255 |
|||||||||
|
180 |
60 |
285 |
||||||||
|
WL-710 |
710 |
145-210 |
140-210 |
150 |
50 |
240 |
55 |
s630 |
465 |
25 |
|
170 |
270 |
|||||||||
|
190 |
65 |
300 |
||||||||
|
WL-800 |
800 |
145-210 |
140-210 |
160 |
50 |
255 |
60 |
≤710 |
515 |
|
|
180 |
285 |
|||||||||
|
200 |
70 |
320 |
||||||||
|
WL-900 |
900 |
145-220 |
140-220 |
170 |
55 |
270 |
65 |
≤800 |
580 |
30 |
|
190 |
300 |
|||||||||
|
230 |
75 |
365 |
||||||||
Please be free to buy the single flange crane wheel with the best price with our professional China manufacturers and suppliers.And the customized products are also offered if you need.
