What are the different types of crane hook sheaves?

Crane hook sheaves play a crucial role in the operation of cranes, facilitating the smooth movement of loads by guiding and supporting the wire ropes. As a leading supplier of crane hook sheaves, I understand the importance of providing high - quality products that meet the diverse needs of the industry. In this blog, I will explore the different types of crane hook sheaves, their features, and applications.

Single Sheave Crane Hook

The single sheave crane hook is one of the simplest and most commonly used types. It consists of a single pulley wheel mounted on a hook. This type of sheave is ideal for light - to medium - duty applications where the load requirements are not excessive.

The main advantage of a single sheave is its simplicity. It is easy to install and maintain, making it a cost - effective solution for many crane operations. For example, in small workshops or construction sites where the lifting capacity is relatively low, a single sheave crane hook can efficiently handle the tasks. However, its lifting capacity is limited compared to multi - sheave systems.

Double Sheave Crane Hook

A double sheave crane hook features two pulley wheels on the hook. This design allows for a more complex rope arrangement, which can increase the mechanical advantage. When using a double sheave, the load is distributed between the two ropes, reducing the stress on each individual rope and increasing the overall lifting capacity.

Double sheave crane hooks are suitable for medium - to heavy - duty applications. They are commonly used in industrial settings such as warehouses, shipyards, and large construction projects. The increased mechanical advantage also means that less force is required to lift a given load, which can improve the efficiency of the crane operation. You can find a high - quality Pulley Wheel for Double Girder Crane in our product range, which is designed to meet the rigorous demands of double - girder crane systems.

Multiple Sheave Crane Hook

For extremely heavy - duty applications, multiple sheave crane hooks are the go - to solution. These hooks can have three, four, or even more pulley wheels. The more sheaves there are, the greater the mechanical advantage and the higher the lifting capacity.

In large - scale industrial operations like steel mills or power plants, where massive loads need to be lifted, multiple sheave crane hooks are essential. They are designed to handle thousands of tons of weight with precision and safety. However, the complexity of the system also means that they require more careful installation and maintenance.

Forged Sheave Crane Hook

Forged sheave crane hooks are made through a forging process, which involves shaping the metal under high pressure. This results in a stronger and more durable sheave compared to those made by other methods such as casting.

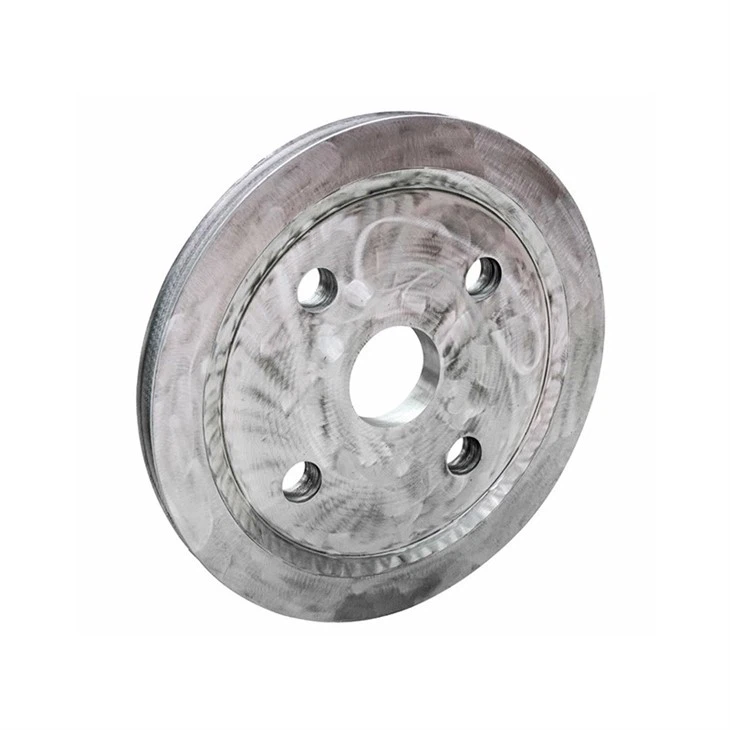

Forged sheaves have excellent resistance to wear, fatigue, and impact. They can withstand the harsh operating conditions in heavy - industrial environments. Our Forged Tighted Seal Pulley Wheel is a prime example of a high - quality forged sheave. It is tightly sealed to prevent the ingress of dust, dirt, and moisture, ensuring long - term reliability and performance.

OEM Sheave Crane Hook

OEM (Original Equipment Manufacturer) sheave crane hooks are custom - made to fit specific crane models. These sheaves are designed to meet the exact specifications of the crane manufacturer, ensuring a perfect fit and optimal performance.

When a crane requires a replacement sheave or an upgrade, an OEM sheave is often the best choice. It eliminates the risk of compatibility issues and ensures that the crane operates at its peak efficiency. We offer OEM Large Wire Rope Pulley Wheels that are precisely engineered to meet the unique requirements of different crane systems.

Tight - Seal Sheave Crane Hook

Tight - seal sheave crane hooks are designed to protect the internal components of the sheave from environmental contaminants. They feature a sealing mechanism that prevents dust, water, and debris from entering the sheave, which can cause premature wear and failure.

In outdoor or dirty industrial environments, tight - seal sheaves are highly recommended. They can extend the service life of the sheave and reduce maintenance costs. Our forged tight - seal pulley wheels are built with high - quality seals to provide reliable protection in challenging conditions.

Cast Sheave Crane Hook

Cast sheave crane hooks are made by pouring molten metal into a mold. This manufacturing process allows for the production of complex shapes and designs at a relatively low cost.

Cast sheaves are suitable for less demanding applications where the load requirements are not extremely high. They are often used in small - scale cranes or in applications where cost is a major consideration. However, they may not be as strong or durable as forged sheaves in heavy - duty applications.

Materials Used in Crane Hook Sheaves

The materials used in the manufacturing of crane hook sheaves are crucial for their performance and durability. Common materials include:

• Steel: Steel is the most widely used material due to its high strength, toughness, and resistance to wear. Different grades of steel can be used depending on the application requirements. For example, high - carbon steel may be used for heavy - duty sheaves, while low - carbon steel can be used for lighter - duty applications.
• Alloy Steel: Alloy steel contains additional elements such as chromium, nickel, and molybdenum, which enhance its strength, hardness, and corrosion resistance. Alloy steel sheaves are often used in harsh environments or for high - performance cranes.
• Cast Iron: Cast iron is a cost - effective material that offers good castability and wear resistance. It is commonly used in less demanding applications where the load requirements are not very high.

Maintenance of Crane Hook Sheaves

Proper maintenance of crane hook sheaves is essential to ensure their safe and efficient operation. Here are some key maintenance tips:

• Regular Inspection: Inspect the sheaves regularly for signs of wear, cracks, or damage. Check the rope grooves for any signs of excessive wear, as this can affect the performance of the rope.
• Lubrication: Keep the sheaves well - lubricated to reduce friction and wear. Use a high - quality lubricant that is suitable for the operating conditions.
• Cleaning: Clean the sheaves to remove dirt, dust, and debris. This can prevent the accumulation of contaminants that can cause premature wear and damage.

Conclusion

In conclusion, there are various types of crane hook sheaves available, each with its own unique features, advantages, and applications. As a supplier of crane hook sheaves, we are committed to providing high - quality products that meet the diverse needs of the industry. Whether you need a single sheave for a light - duty application or a multiple sheave system for a heavy - duty operation, we have the right solution for you.

If you are in the market for crane hook sheaves, I encourage you to contact us for more information and to discuss your specific requirements. Our team of experts is ready to assist you in selecting the best product for your application. We can also provide detailed product specifications, pricing, and delivery options. Let's work together to ensure the safe and efficient operation of your cranes.

References

• "Crane Handbook: Engineering and Operation" by C. J. King
• "Materials Science and Engineering: An Introduction" by William D. Callister Jr. and David G. Rethwisch
• Industry standards and guidelines for crane manufacturing and operation
